A powerful and comprehensive device to measure and display the frequency components and signal strength of RF signals. A spectrum analyzer is an essential tool for measuring and visualizing the frequency components of radio signals. It helps engineers identify interference, measure signal power, verify transmission quality, and ensure system performance across various wireless communication networks. In modern communication environments — especially with the rise of 5G and dense RF deployments — accurate spectrum analysis is vital for maintaining signal integrity and reducing troubleshooting time.
Product features

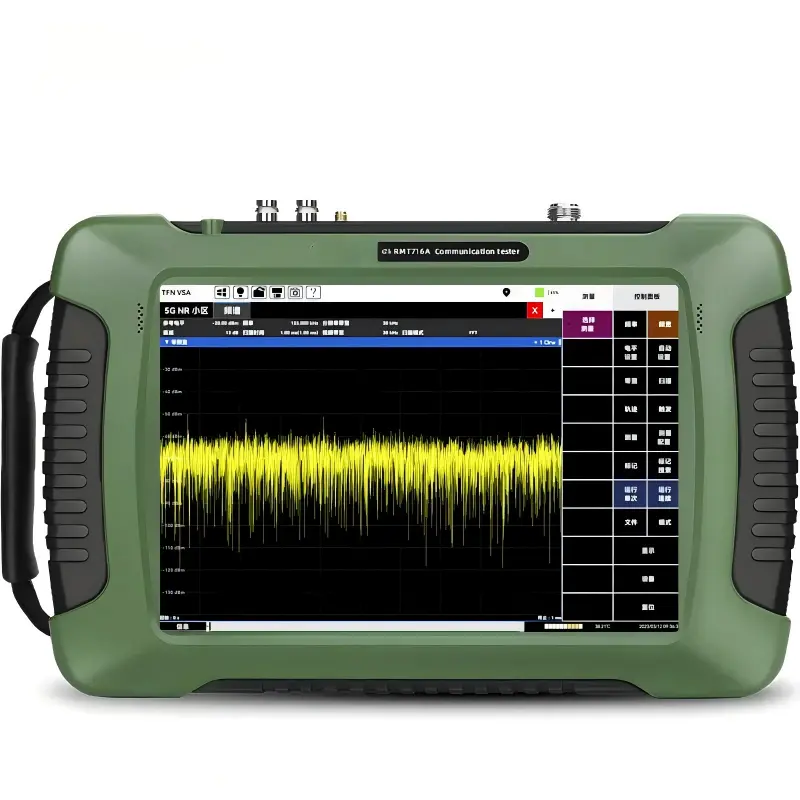

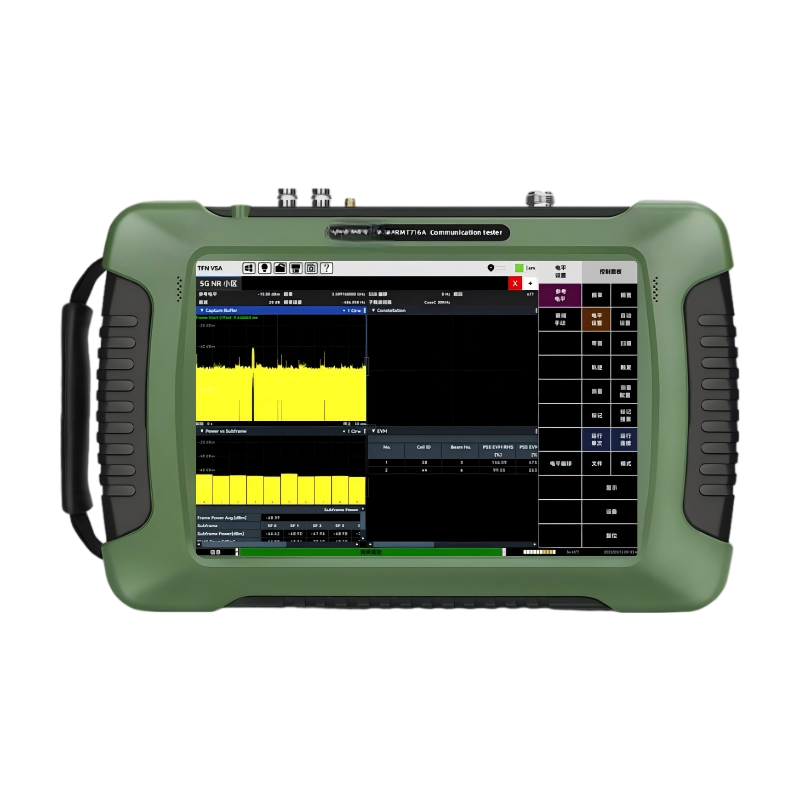

RMT handheld spectrum analyzers are advanced and precise RF analyzer for fast signal analysis. Lightweight and user-friendly. Featured by cable and antenna test, field strength measurements, vector network analysis, and so on.
| Item / Model | U-RMT714A | U-RMT716A | U-RMT717A | U-RMT719A | RMT720A | RMT740A |
| Frequency Range | 5KHz~4.5GHz | 5KHz~6.32GHz | 5KHz~7.5GHz | 5KHz~9GHz | 5KHz~20GHz | 5KHz~40GHz |
| Sweep Speed | 9kHz~6.3GHz:18GHz/s@25KHz, 9kHz~9G/20G:137GHz/s@25KHz | |||||
| Frequency Accuracy | ±1 ppm | |||||
| Level accuracy | ±0.15 dB | |||||
| Level resolution | 0.1 dB | |||||
| Maximum input level | 25.7 dBm | |||||
| Third-order intercept point | Typical TOI: > +12 dBm | |||||
| Second harmonic suppression | ＜ -75 dBC | |||||
| Real-time bandwidth | Up to 100 MHz | |||||
| Signal demodulation | 5GNR, TDD-LTE, FDD-LTE, NB-loT, WCDMA, GSM, vector signal | |||||
| Power | AC100-240V/50-60Hz DC12V | |||||
| Dimension | 295mm*225mm*50mm | |||||

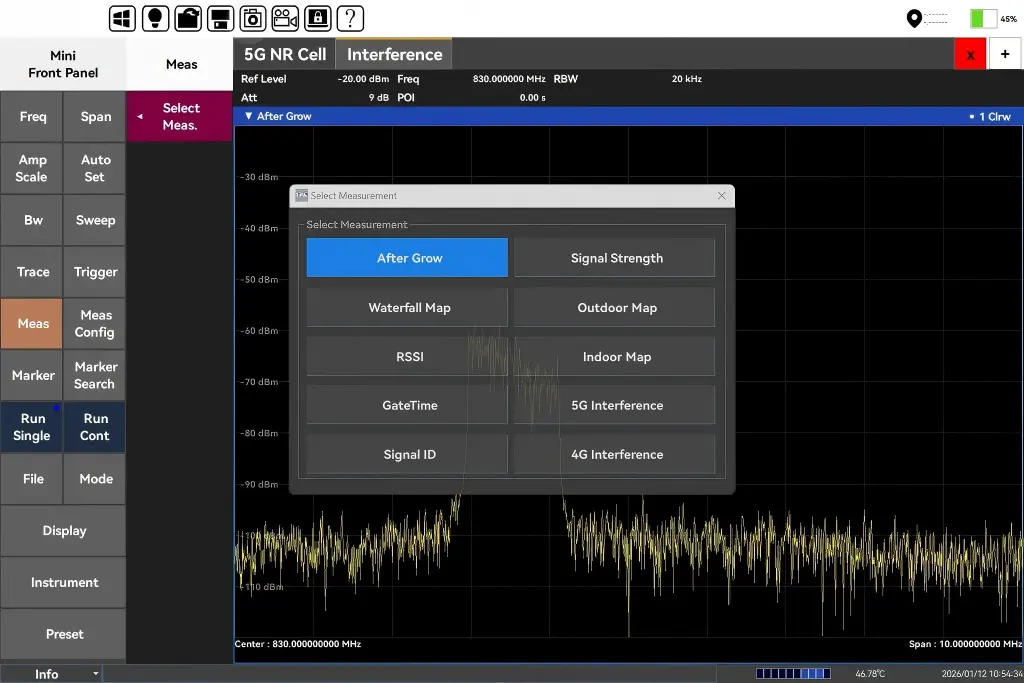

Interfernece analysis: waterfall map, afterglow spectrum, four-window interference analysis, TDD system interference, demical location
Base station analysis: 5G NR, TDD-LTE, FDD-LTE, NB-loT, WCDMA, GSM, vector signal
Comprehensive drive test coverage: real-time indoor and outdoor signal analysis across 2G, 3G, 4G, and 5G networks.
Spectrum testing functions: spectrum scanning, field strength measurement, channel power, occupied bandwidth, adjacent channel power, harmonic distortion, carrier-to-noise ratio, phase noise, and audio demodulation.
Comprehensive spectrum analysis capabilities for interference detection, including spectrum analysis across selected bandwidths, direction angle monitoring, directional power monitoring, and demodulation performance metrics.
5G NR Cell

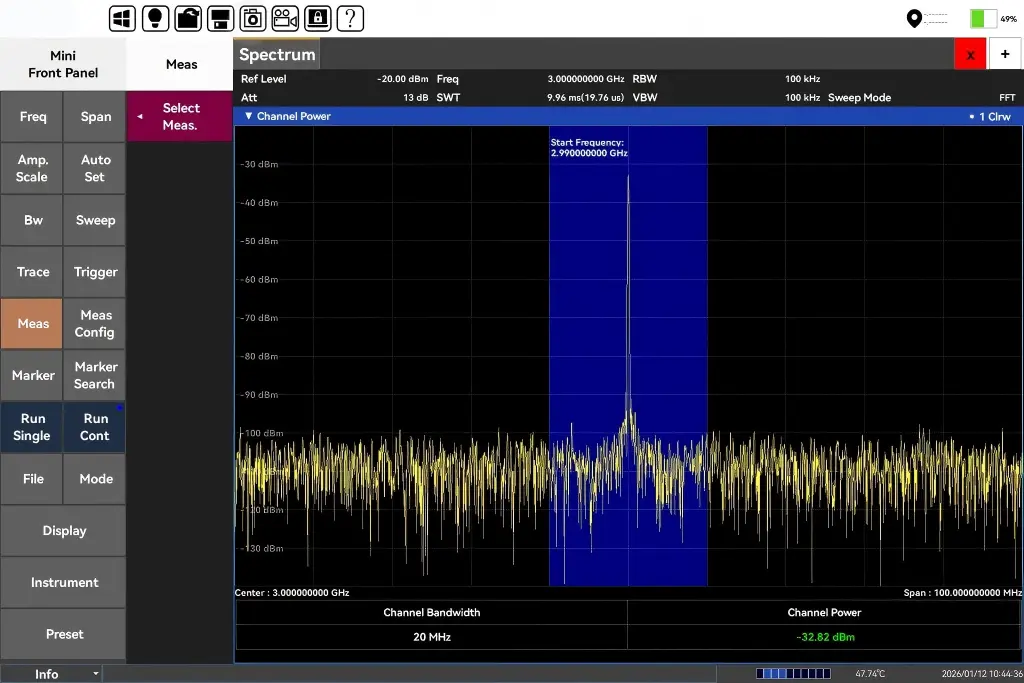

Channel Power Measurement
Real-time Spectrum Analysis
