Ultra-Thin Portable X-Ray Inspection Device

A. Product Introduction

The Ultra-Thin Portable X-Ray Inspection Device is a lightweight, compact, and high-definition X-ray imaging system designed for rapid deployment and real-time inspection in the field.

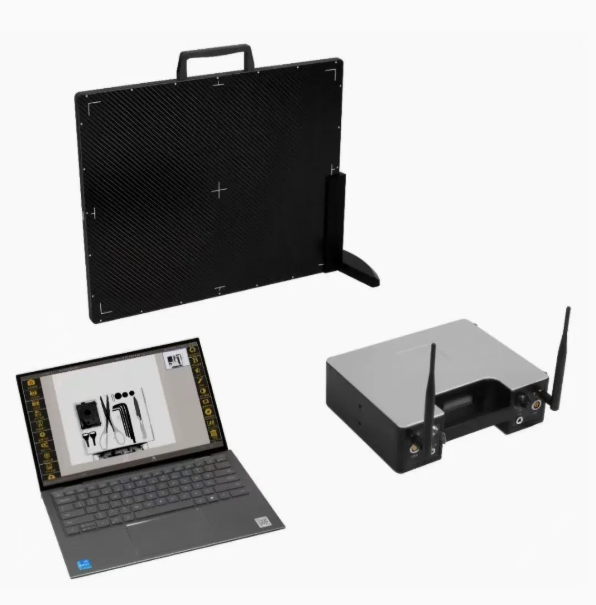

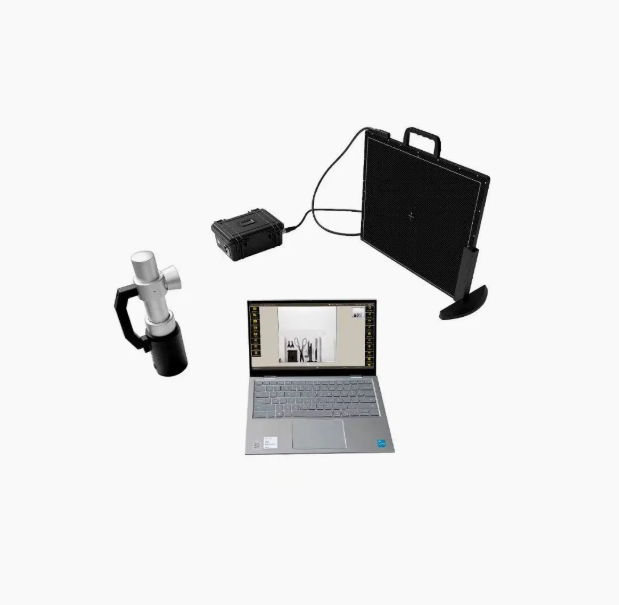

With an ultra-slim modular design, it integrates an X-ray source, a digital receiving panel, and an intelligent data processing terminal. This structure allows for quick assembly, easy transportation, and instant operation, making it ideal for security inspection, explosive ordnance disposal (EOD), and law enforcement applications.

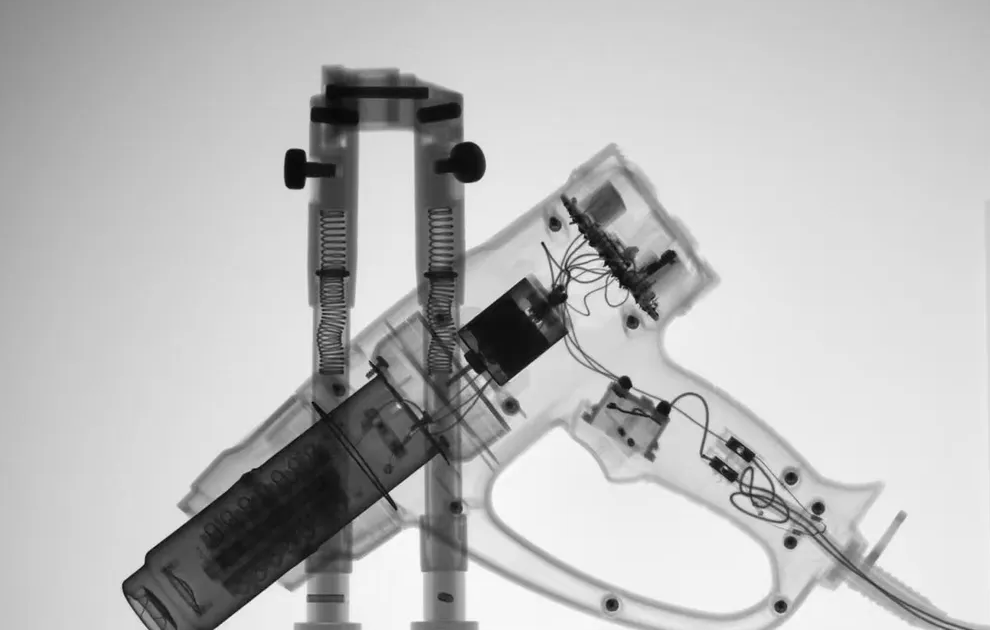

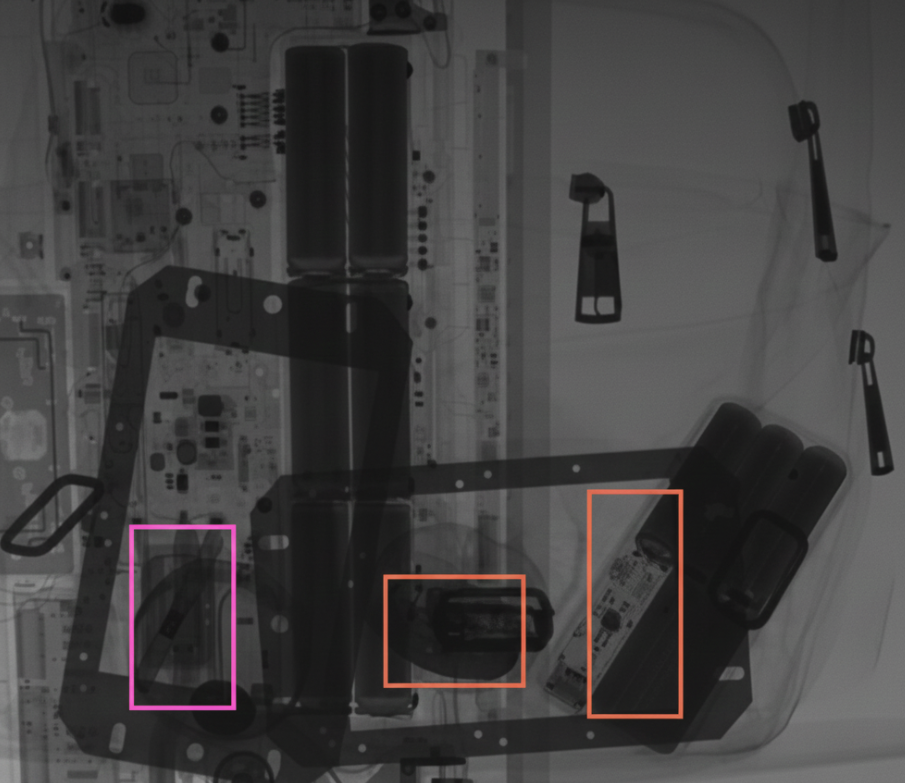

Engineered with high-resolution imaging technology, the system delivers clear, detailed visuals for accurate identification of concealed objects, ensuring efficiency and safety during field operations.

B. Technical Specifications of the Receiving Screen

C. X-Ray Source Technical Parameters

The device is compatible with multiple X-ray sources such as XRS-3, XR200, and CP120, offering flexibility for different inspection requirements.

X-Ray Machine Specifications:

1. Weight: 2.3 kg
2. Output Voltage: Continuously adjustable from 0-85 kV with constant current mode
3. Penetration Capability: 120 mm aluminum plate / 20 mm steel plate
4. Dual-Purpose Interface: Supports both charging and triggering, minimizing cable connections
5. Control Buttons: Stainless steel, dustproof, waterproof, with connection indicators
6. Safety Design: Anti-misoperation handle; control interfaces are recessed within the protective grip zone
7. Power Supply: Dual-use AC/DC system powered by rechargeable battery

D. Software and Data Processing Terminal Specifications

1. Display Terminal: 14-inch or larger industrial computer, running Windows 7 or above
2. System Performance: ≥8 GB RAM, ≥512 GB SSD
3. User Interface: Bilingual (Chinese/English) with full touchscreen control
4. Image Manipulation: Real-time zoom, grayscale, brightness, and contrast adjustment through multi-touch gestures
5. Core Functions: Image capture, storage, measurement, pseudo-color rendering, and file management
6. Automatic Image Optimization: Intelligent algorithms automatically process and enhance captured images for maximum clarity
7. Image Stitching & 3D Visualization: Supports automatic/manual stitching of ≥9 images with 3D imaging capabilities
8. Advanced Image Processing Functions:Edge enhancementNegative/positive imagingPseudo-color and embossingRotation, mirroring, labeling, and dimension measurementFile searching under multiple conditions

E. Application Scope and Scenarios

Security and EOD Operations

• Real-time inspection of suspicious packages, bags, or containers to identify explosives, detonators, firearms, and contraband.
• Widely used in explosive disposal missions, public security operations, and surveillance tasks.
• Enhances operational efficiency while reducing the risk to personnel during high-risk missions.

Confidential and Secure Facilities

• Used to detect and locate hidden surveillance devices, eavesdropping tools, and spy equipment within embassies, government buildings, and sensitive sites.

Law Enforcement and Customs

• Applied in drug control, border inspection, technical investigation, and customs clearance to detect smuggling or concealed illegal items.
• Portable design allows rapid setup at checkpoints, airports, seaports, and field operations.

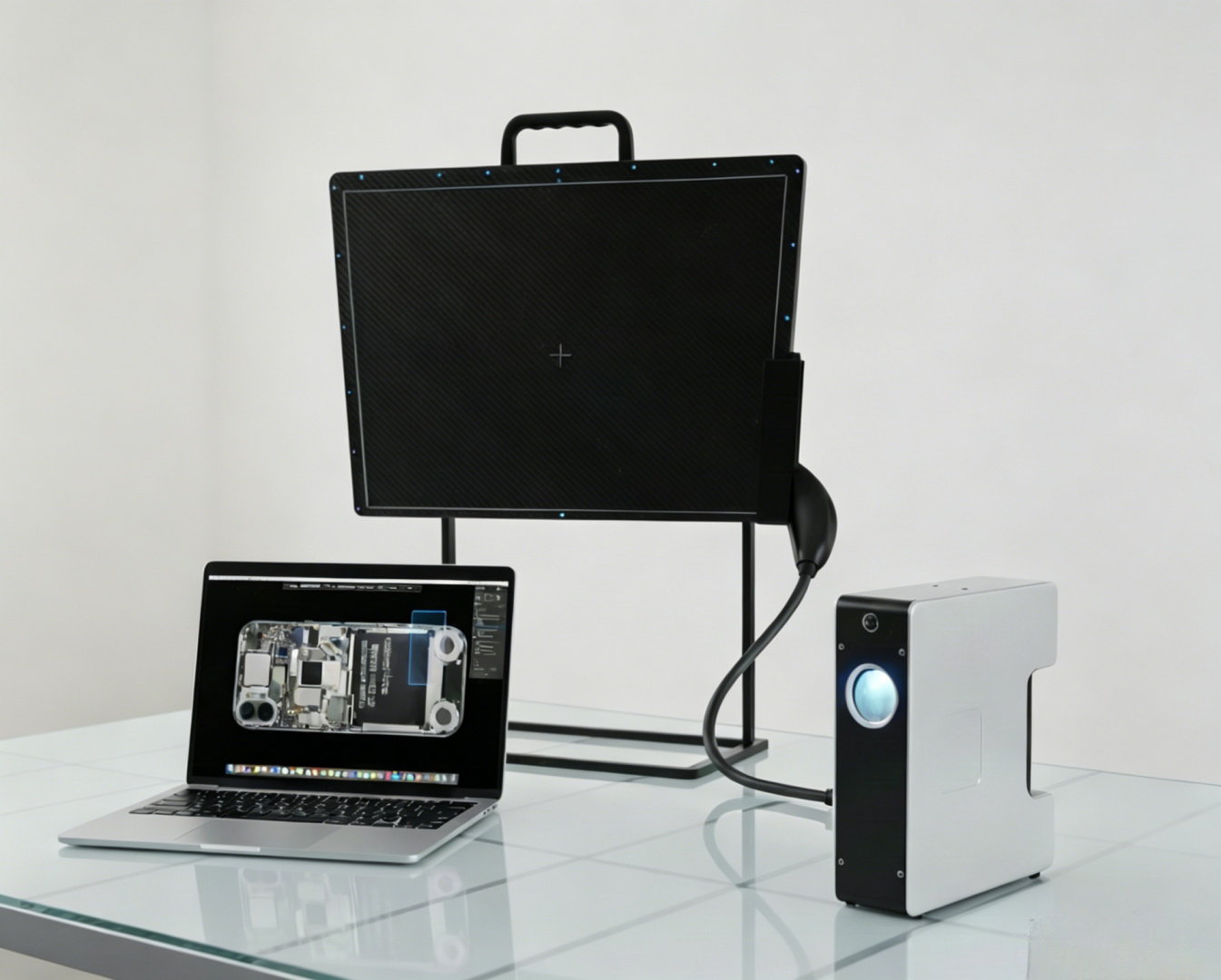

F. Real Images

(Insert photos or illustrations of the device in operational and field environments - e.g., EOD teams, customs inspections, or mobile security units.)
