Overview The Camera Detector is a specialized device designed to detect and pinpoint hidden cameras, including pinhole cameras, regardless of whether they are powered on or off and how they transmit their video. Operating on the "cat's eye" principle, the device utilizes light reflection to identify hidden camera lenses, revealing their presence through a red or green dot visible on the lens. The detector can effectively locate cameras within a distance ranging from 0.5 meters to 50 meters.
Product Introduction

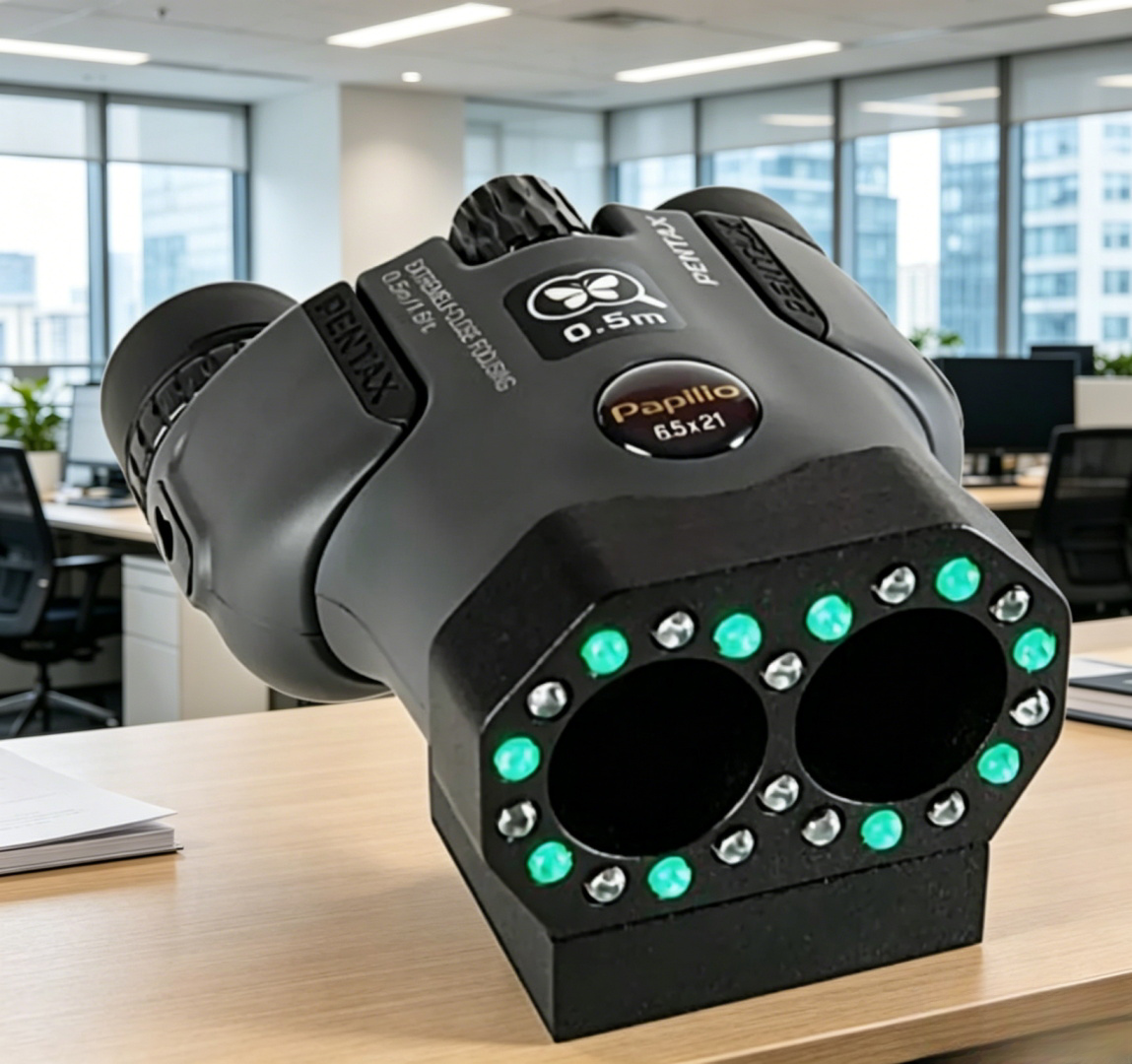

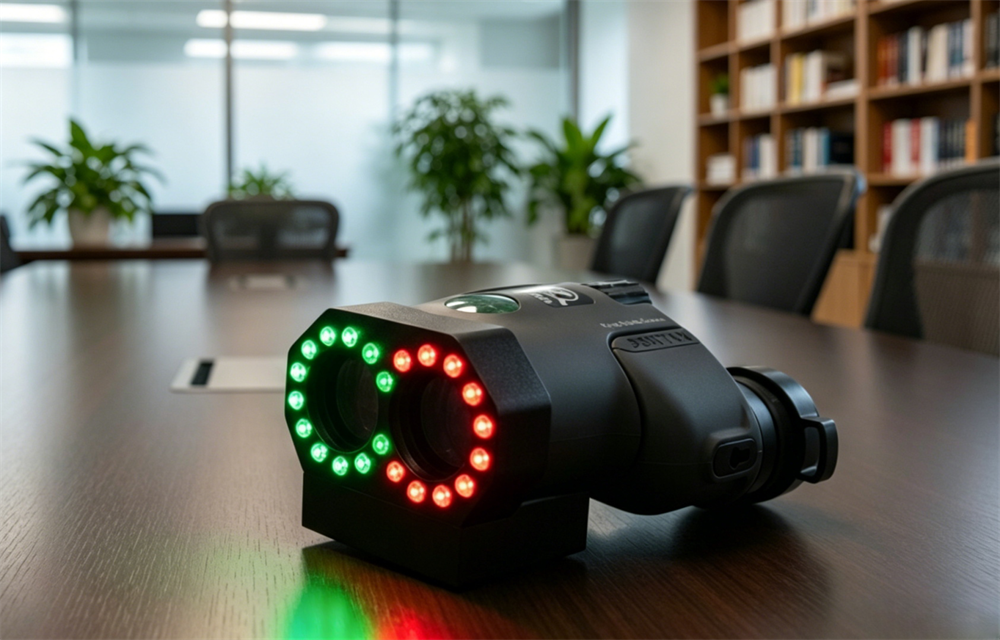

This Professional Optical Scanner for Hidden Cameras is a professional detector designed to locate hidden pinhole cameras. It can detect cameras regardless of whether they are powered on/off or transmitting video signals.
Detection Principle
It identifies cameras using the principle of light retro-reflection (retro-flash). When scanning suspicious areas, a red or green dot visible in the viewfinder indicates a hidden camera.
Technical Principle
The device operates based on optical reflection. When light travels between different media, it changes direction at the boundary and reflects back. Light reflects off surfaces such as water, glass, and camera lenses. Using the reversibility of light paths in reflection, this scanner can reliably detect hidden cameras.
Product Features
· Clear and targeted detection
· Binocular design for greater comfort (no need to close one eye)

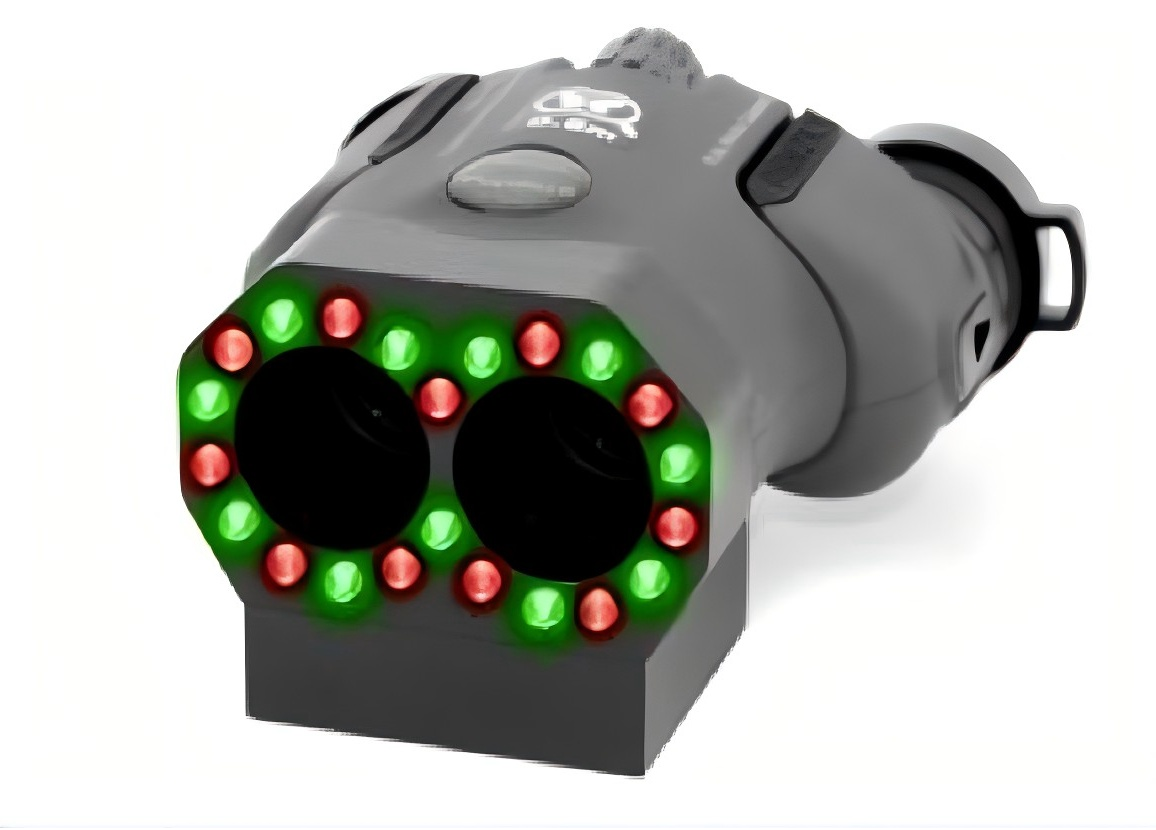

· Green LED light detects cameras protected by special filters that may be missed by red light
· Built in rechargeable battery
· 8.5× zoom for inspecting tiny details
Technical Specifications
· Detection range: 0.5 m – 50 m (depending on ambient light)
· Field of view: 7.5°
· Focus range: 0.5 m to infinity
· Illumination modes:
o Solid green
o Solid red
o Pulsed green
o Pulsed red
o Pulsed red/green
· Power supply: 3.7V lithium battery
· Light source: LED
· Number of LEDs: 22
· Operating time (fully charged):
o Pulsed red/green mode: ≥ 1 hour
o Continuous mode: ≥ 1 hour
| Specification | Details |
| Detection range | 0.5 m – 50 m (depending on ambient light) |
| Field of view | 7.5° |
| Focus range | 0.5 m to infinity |
| Illumination modes | • Solid green• Solid red• Pulsed green• Pulsed red• Pulsed red/green |
| Power supply | 3.7V lithium battery |
| Light source | LED |
| Number of LEDs | 22 |
| Operating time (fully charged) | • Pulsed red/green mode: ≥ 1 hour• Continuous mode: ≥ 1 hour |
